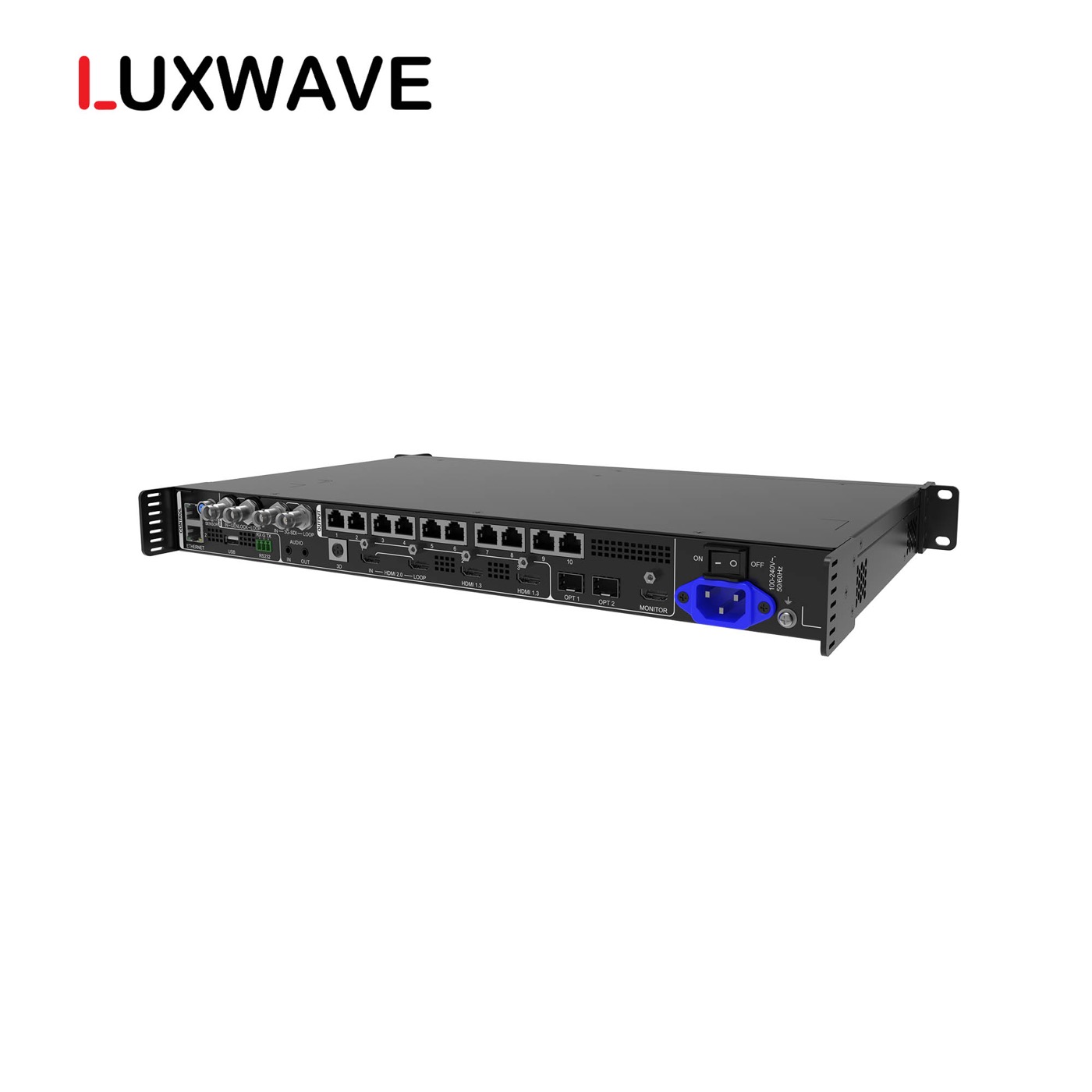

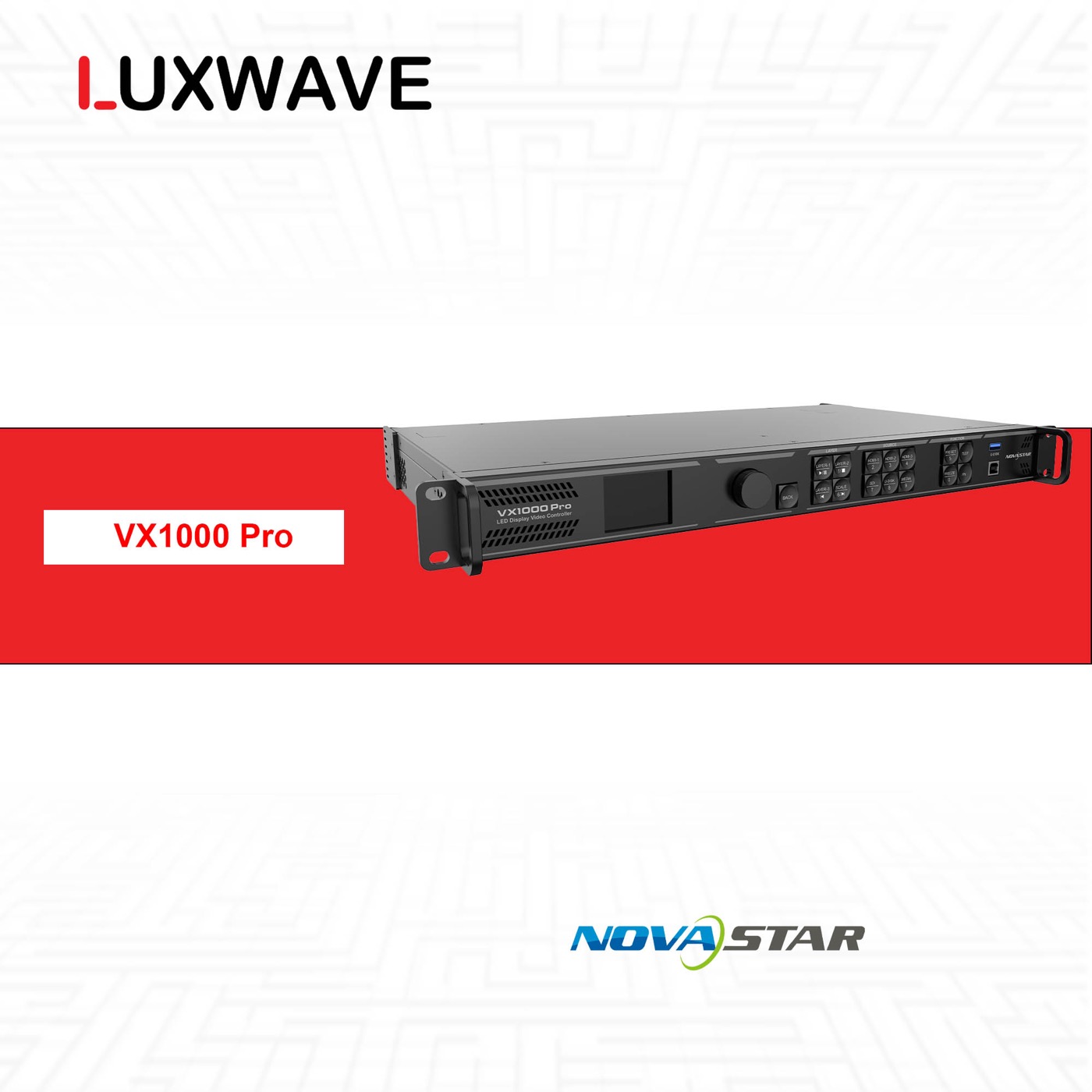

NovaStar VX1000 Pro

NovaStar VX1000 Pro
• Brand: NovaStar
• Model: VX1000 Pro
• Product type: All-in-one LED display controller (video processing + control)
• Working modes: video controller / fiber converter / ByPass
• Loading capacity: up to 6,500,000 pixels (max width 10,240 px, max height 8,192 px)
• Max capacity per Gigabit port: 650,000 px (8-bit)
• Max video input resolution: 4K×2K@60Hz (4096×2160@60Hz, HDMI 2.0); max frame rate up to 144 Hz
• Layers: 6 (6× 2K×1K layer resources; 4K×2K / 4K×1K / 2K×1K)
• Color depth: 8 / 10 / 12-bit (HDMI 2.0); HDMI 1.3 8-bit; 3G-SDI 10-bit

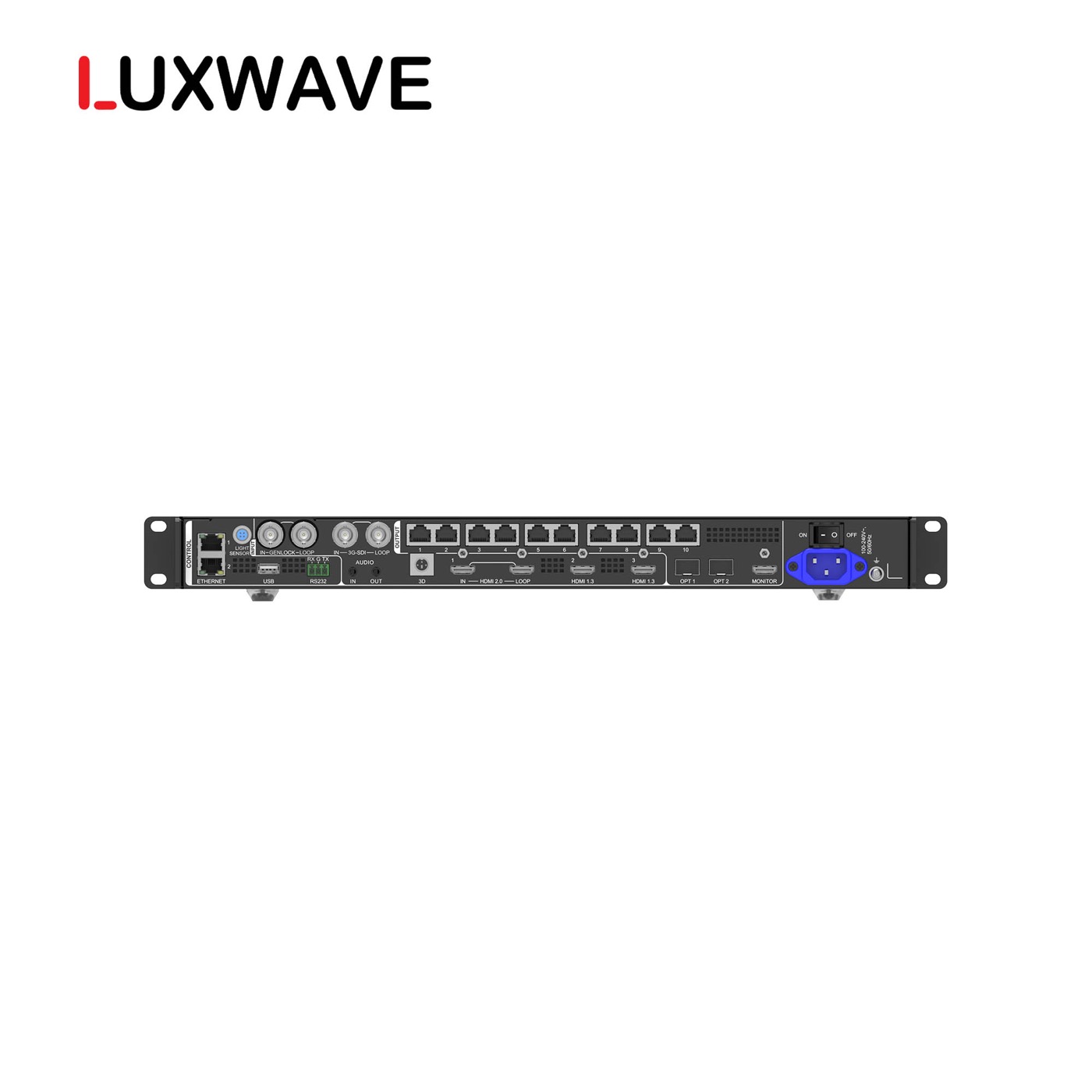

• Video inputs: 1× HDMI 2.0 (IN & LOOP), 2× HDMI 1.3, 1× 3G-SDI (IN & LOOP), 1× 10G optical fiber (OPT 1, self-adaptive), 1× USB 3.0
• LED output: 10× Gigabit Ethernet ports
• Fiber output: 2× 10G optical fiber (OPT 1 self-adaptive in/out; OPT 2 copy/back up or loop) — single-mode ≤10 km / multi-mode ≤300 m
• Monitoring output: 1× HDMI 1.3 (1920×1080@60Hz fixed)
• Other connectors: 1× 3D connector; 3.5 mm audio input & output (sampling up to 48 kHz)
• Image processing: Genlock (output sync); low latency (down to 0 frame in ByPass); pixel-level brightness & chroma calibration; end-to-end backup (input / Ethernet / OPT / dual receiving-card); 256 presets; OSD

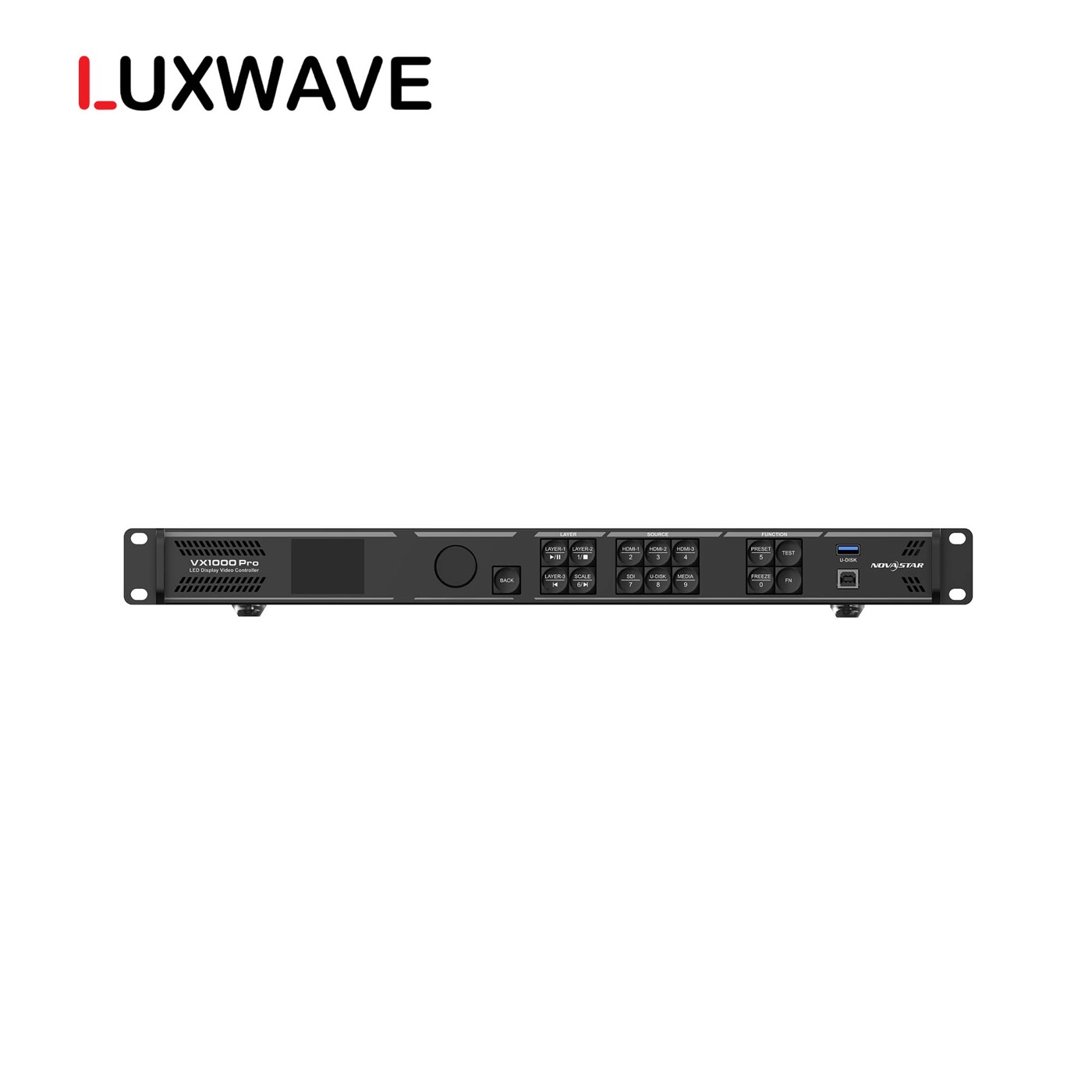

• Control: front-panel knob, NovaLCT, Unico, VICP app, remote (optional); 1× USB 2.0 control (cascade ≤5, firmware/EDID/logs); RS232; light-sensor connector
• Input voltage: 100–240 V~, 50/60 Hz
• Rated power consumption: 43 W
• Operating temperature: 0°C to +50°C (5%–85% RH non-condensing)
• Storage temperature: −10°C to +60°C (5%–95% RH non-condensing)
• Dimensions: 482.6 × 302.2 × 50.1 mm · Net weight: 3.9 kg
• Certifications: CE, FCC, IC, RCM, EAC, UL, CB, KC, RoHS
• Manufacturer certifications: ISO 9001 (Quality Management System, valid 2024–2027) · ISO 27001 (Information Security Management System)
