Novastar

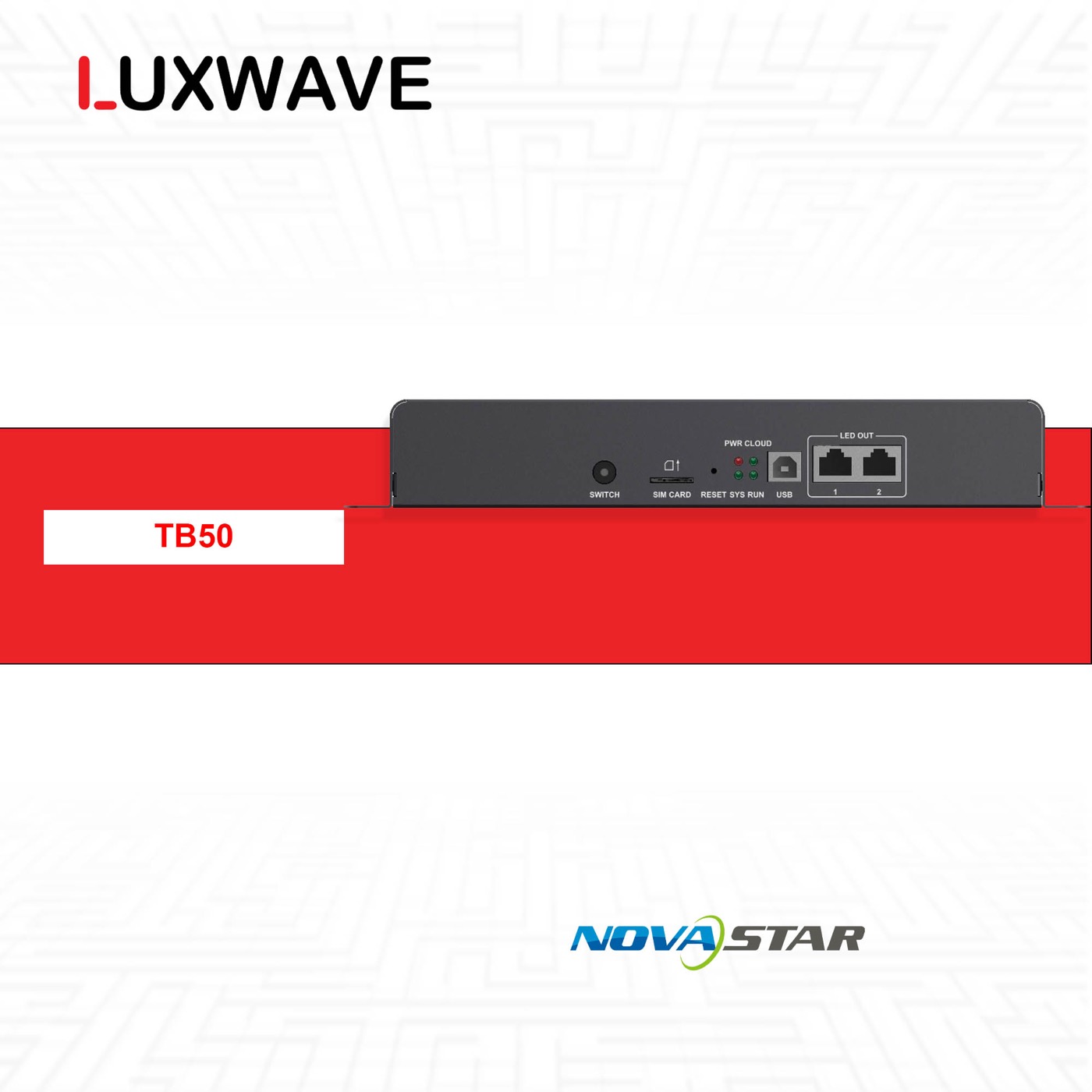

NovaStar TB50

Taurus media player — tải 1,3 triệu px, có HDMI 1.3 (sync)

BrandNovaStar

ModelTB50

Product typeTaurus-series multimedia player (synchronous & asynchronous)

OriginMade in China

Maximum loading capacityup to 1,300,000 pixels (max width 4096 px, max height 4096 px)

Giá: Liên hệ báo giá theo cấu hình & diện tích (m²) · VAT chưa gồm.

Nhận báo giá Zalo tư vấn

Hotline 0382 577 886

Phân phối chính hãng
Bảo hành & thi công
Hỗ trợ vận hành 24/7

Tổng quan

Giới thiệu NovaStar TB50

Bộ phát đa phương tiện Taurus của NovaStar, tải tối đa 1,3 triệu px và thêm cổng HDMI 1.3 cho chế độ đồng bộ (sync) — phát nội dung trực tiếp từ nguồn HDMI ngoài. 2 cổng Gigabit, chạy Android 11, quản lý qua đám mây.

Vì sao chọn

Điểm nổi bật của NovaStar TB50

Tải tối đa 1,3 triệu px

2 cổng Gigabit Ethernet

1× HDMI 1.3 (đồng bộ + HDMI loop)

Chip ARM A55 quad @1.8GHz · Android 11

Ứng dụng

Phù hợp cho không gian nào?

Bán lẻ / showroomMặt tiền / ngoài trờiVăn phòng

Chi tiết

Thông số kỹ thuật NovaStar TB50

Thông số tổng hợp từ datasheet chính hãng Novastar.

Brand: NovaStar
Model: TB50
Product type: Taurus-series multimedia player (synchronous & asynchronous)
Origin: Made in China
Maximum loading capacity: up to 1,300,000 pixels (max width 4096 px, max height 4096 px)
Ethernet output: 2× Gigabit (default both primary; can set one primary + one backup)

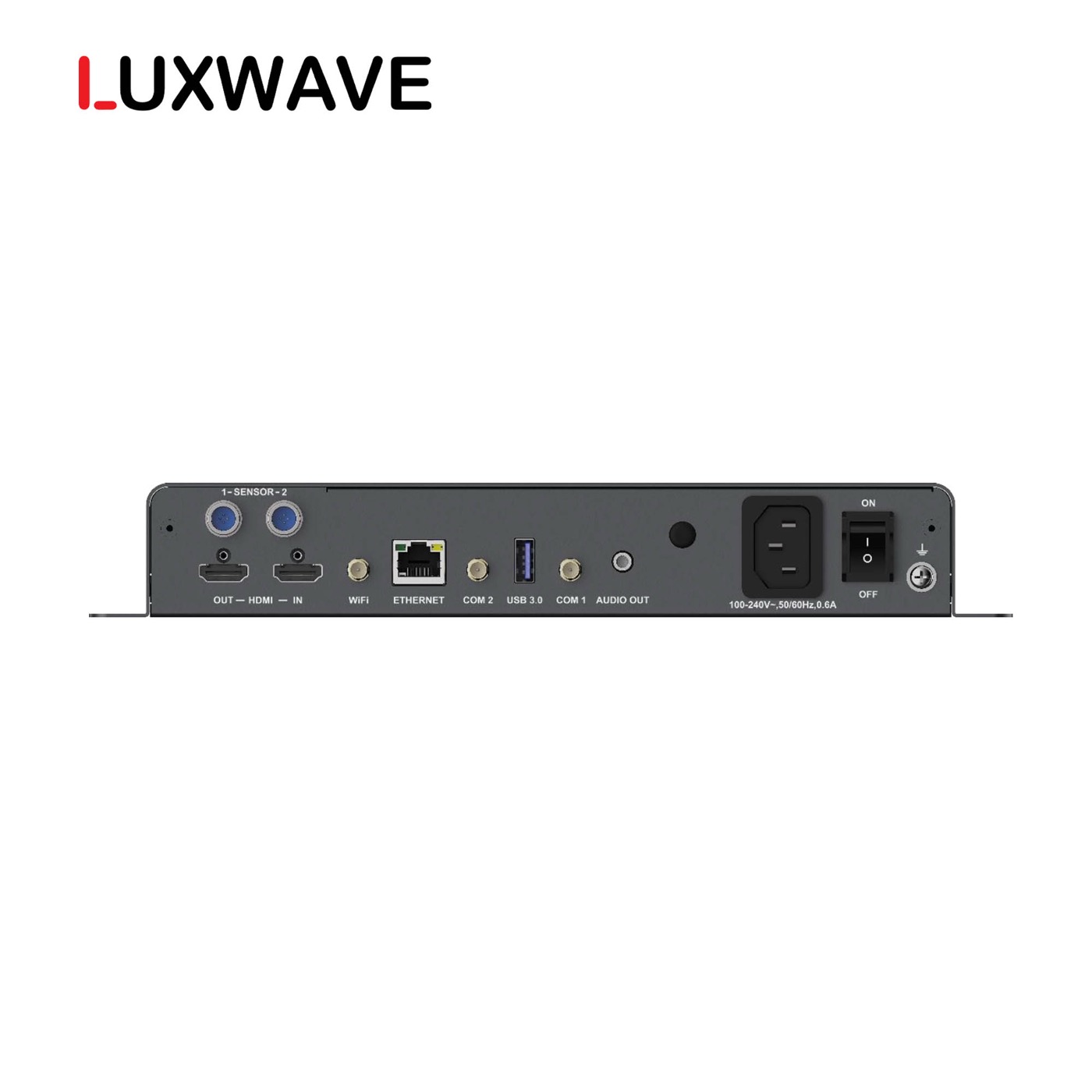

HDMI: 1× HDMI 1.3 connector — input for synchronous mode + HDMI loop output (max output 1920×1200@60Hz)
Audio: 1× stereo audio output (sample rate 48 kHz)
Sensor: 2× connectors (brightness / temperature & humidity)
Control: 1× USB 3.0 (Type A) + 1× USB (Type B) + 1× Gigabit Ethernet
Processor: Quad-core ARM A55 @1.8 GHz
Video decoding: hardware 4K decoding (H.265/HEVC up to 60fps, H.264 up to 30fps)
RAM: 1 GB · Internal storage: 32 GB
Playback: 1× 4K, 2× 1080p, 5× 720p, 6× 480p, or 6× 360p
Modes: synchronous & asynchronous · multi-screen sync (NTP / GPS / RF)
Wireless: Wi-Fi AP/STA · 4G module support (sold separately)
Input voltage: AC 100–240 V~, 50/60 Hz, 0.6 A
Maximum power consumption: 18 W
Operating environment: −20°C to +60°C, 0% RH–80% RH non-condensing
Storage environment: −40°C to +80°C, 0% RH–80% RH non-condensing
Dimensions: 274.3 × 139.0 × 40.0 mm
Net weight: 1234.0 g
Ingress protection rating: IP20
System software: Android 11.0
Certifications: CE, RoHS, FCC, IC, FCC ID, IC ID, UKCA
Manufacturer certifications: ISO 9001 (Quality Management System, valid 2024–2027) · ISO 27001 (Information Security Management System)

Sao chép thông số cho báo giá

NovaStar TB50
• Brand: NovaStar
• Model: TB50
• Product type: Taurus-series multimedia player (synchronous & asynchronous)
• Origin: Made in China
• Maximum loading capacity: up to 1,300,000 pixels (max width 4096 px, max height 4096 px)
• Ethernet output: 2× Gigabit (default both primary; can set one primary + one backup)
• HDMI: 1× HDMI 1.3 connector — input for synchronous mode + HDMI loop output (max output 1920×1200@60Hz)
• Audio: 1× stereo audio output (sample rate 48 kHz)
• Sensor: 2× connectors (brightness / temperature & humidity)
• Control: 1× USB 3.0 (Type A) + 1× USB (Type B) + 1× Gigabit Ethernet
• Processor: Quad-core ARM A55 @1.8 GHz
• Video decoding: hardware 4K decoding (H.265/HEVC up to 60fps, H.264 up to 30fps)
• RAM: 1 GB · Internal storage: 32 GB
• Playback: 1× 4K, 2× 1080p, 5× 720p, 6× 480p, or 6× 360p
• Modes: synchronous & asynchronous · multi-screen sync (NTP / GPS / RF)
• Wireless: Wi-Fi AP/STA · 4G module support (sold separately)
• Input voltage: AC 100–240 V~, 50/60 Hz, 0.6 A
• Maximum power consumption: 18 W
• Operating environment: −20°C to +60°C, 0% RH–80% RH non-condensing
• Storage environment: −40°C to +80°C, 0% RH–80% RH non-condensing
• Dimensions: 274.3 × 139.0 × 40.0 mm
• Net weight: 1234.0 g
• Ingress protection rating: IP20
• System software: Android 11.0
• Certifications: CE, RoHS, FCC, IC, FCC ID, IC ID, UKCA
• Manufacturer certifications: ISO 9001 (Quality Management System, valid 2024–2027) · ISO 27001 (Information Security Management System)
