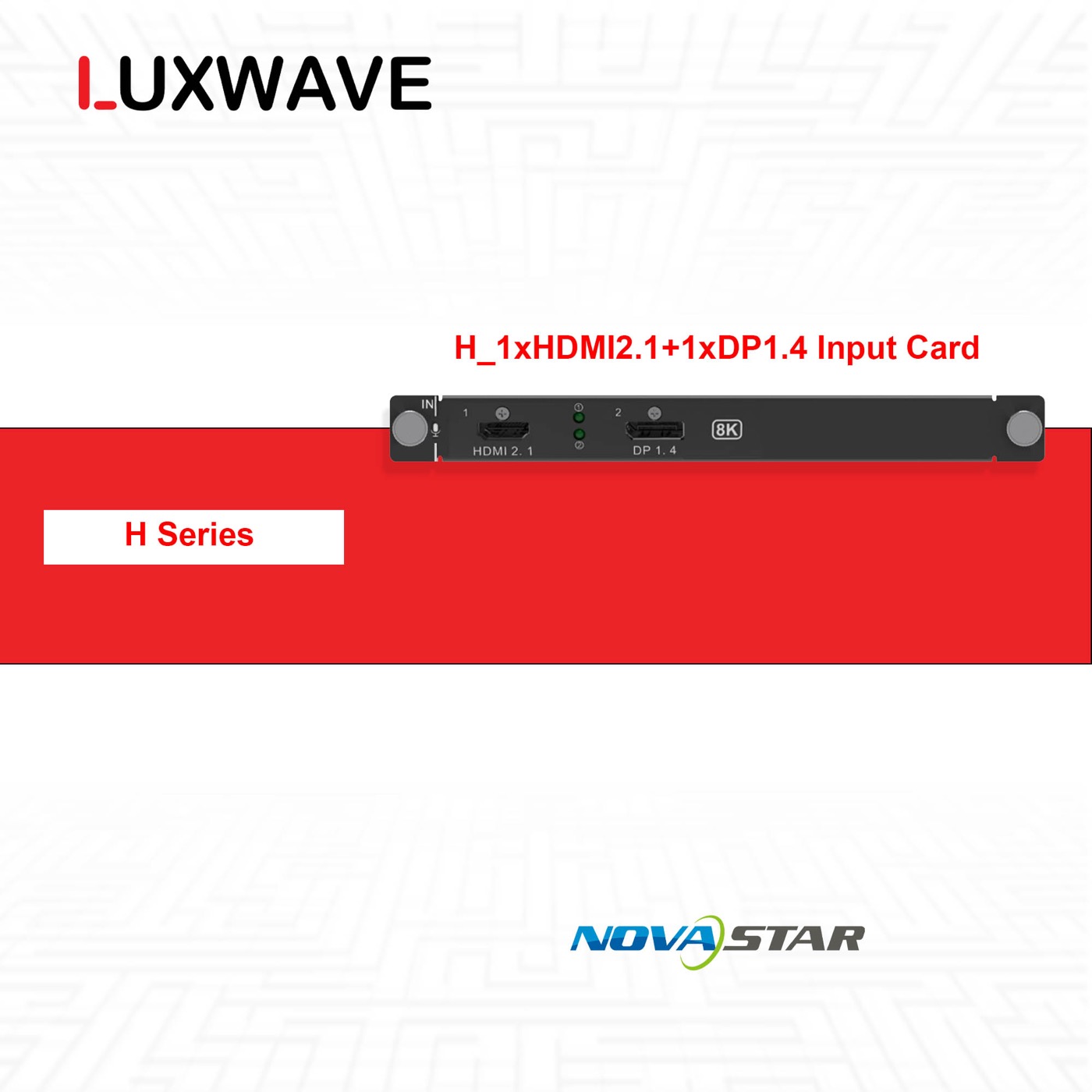

NovaStar H_1xHDMI2.1+1xDP1.4 Input Card

NovaStar H_1xHDMI2.1+1xDP1.4 Input Card
• Brand: NovaStar
• Model: H_1xHDMI2.1+1xDP1.4 Input Card
• Product type: H Series input card for the H2 video wall splicer (modular, hot-swappable)
• Connectors: 1x HDMI 2.1 + 1x DP 1.4
• 1x HDMI 2.1: Backward compatible with HDMI 2.0, HDMI 1.4 and HDMI 1.3
• 1x HDMI 2.1: Supports the maximum resolution of 8192×4320@30Hz and the minimum resolution of 800×600@59.94Hz.
• 1x HDMI 2.1: HDCP 2.3 compliant
• 1x HDMI 2.1: Supports embedded audio input, with audio sampling rate of 48kHz.
• 1x HDMI 2.1 Custom resolutions: Max. width: 8192 pixels (8192×2304@60Hz)
• 1x HDMI 2.1 Custom resolutions: Max. height: 8192 pixels (2188×8192@60Hz)
• 1x DP1.4: Backward compatible with DP 1.2 and DP 1.1
• 1x DP1.4: Supports the maximum resolution of 8192×4320@30Hz and the minimum resolution of 800×600@59.94Hz
• 1x DP1.4: Supports embedded audio input, with audio sampling rate of 48kHz.
• 1x DP1.4: HDCP 2.3 compliant
• 1x DP1.4 Custom resolutions: Max. width: 8192 pixels (8192×2304@60Hz)
• 1x DP1.4 Custom resolutions: Max. height: 8192 pixels (2188×8192@60Hz)
• Status LEDs - On: The input source is accessed normally.
• Status LEDs - Off: No input source is accessed or the input source is abnormal.
• Specifications - Weight: 550 g
• Specifications - Dimensions: 193 mm × 247.12 mm × 21.15 mm
• Specifications - Power consumption: 17 W
• Note: To ensure stable transmission of 8K ultra HD images, it is recommended to use HDMI 2.1/DP 1.4 certified video cables.
• Compatible with: NovaStar H2 video wall splicer (modular hot-swap card)
• Manufacturer certifications: ISO 9001 (Quality Management System, valid 2024–2027) · ISO 27001 (Information Security Management System)
