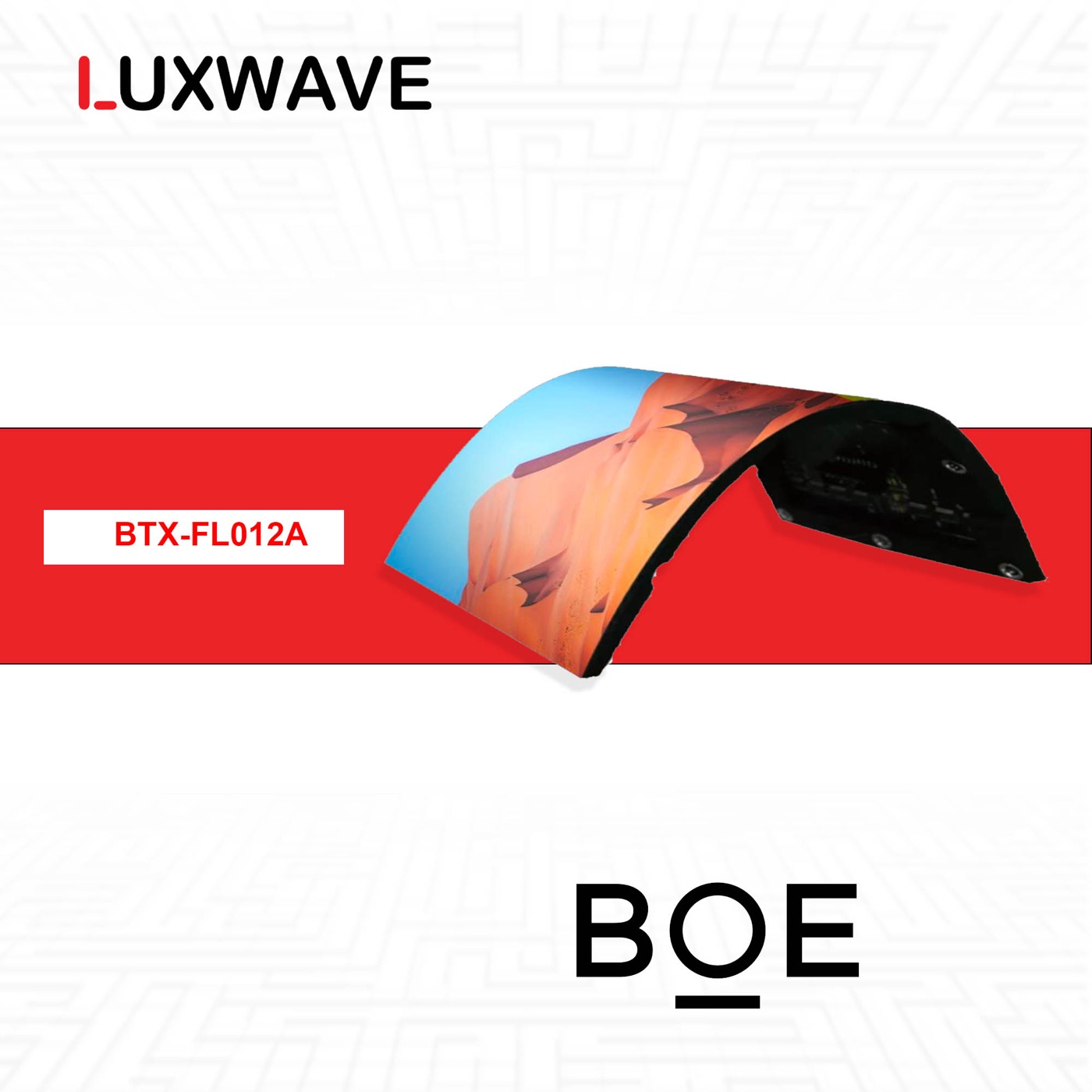

BOE BTX-FL012A P1.25

BOE BTX-FL012A P1.25
• Brand: BOE MLED
• Model: BTX-FL012A
• Product type: Module LED dẻo/uốn cong (flexible SMD)
• Origin: Made in China
• Pixel Pitch(mm): 1.25
• LED Type: SMD1010
• Module Resolution(W×H): 256*128
• Module Size(W×H×D)/(mm): 320*160*7.5
• Pixel Density(dots/㎡): 640000
• Module Weight(Kg): 0.285±0.05
• Module Flatness(mm): ≤0.2
• Bending Arc(°): 120~180°
• Recommended Minimum Diameter for Soft Bending Module: 6 pieces for a full circle, bending not less than φ611mm
• White Balance Brightness(nits): 450
• Color Temperature(K): 8000-9500 Adjustable
• Viewing Angle (Horizontal/Vertical)(°): 150/130
• Refresh Frequency(Hz): 3840
• Grayscale(bit): 13
• Scanning Mode: 1/64
• AC Operating Voltage(V): 5
• Signal Input Interface Type: HUB320
• Maximum Power per Module (W): 22
• Application Scenarios: Indoor
• Best View Distance(m): 1.25
• Storage Temperature(℃)/Humidity (RH): -20℃~50℃/10%~65%
• Working Temperature(℃)/Humidity(RH): -10℃~40℃/10%~60%
• Protection Grade: IP30
• LED Service Time(H): 100000
• Module Maintenance Methods: Front/Rear maintenance
• Continuous Operating Time: ≥7X24hrs, support continuous display
• Product Features: Flexible PCB soft board, the bottom shell are made of superior silicone material, bending angle of the module is 120°~180°
• Product Features: Module adopts high refresh high grayscale IC, more uniform heat dissipation, refresh frequency can reach 3840Hz
• Product Features: Module adopts 18 pcs strong magnetic adsorption mounting with good flatness, also can be finely adjusted
