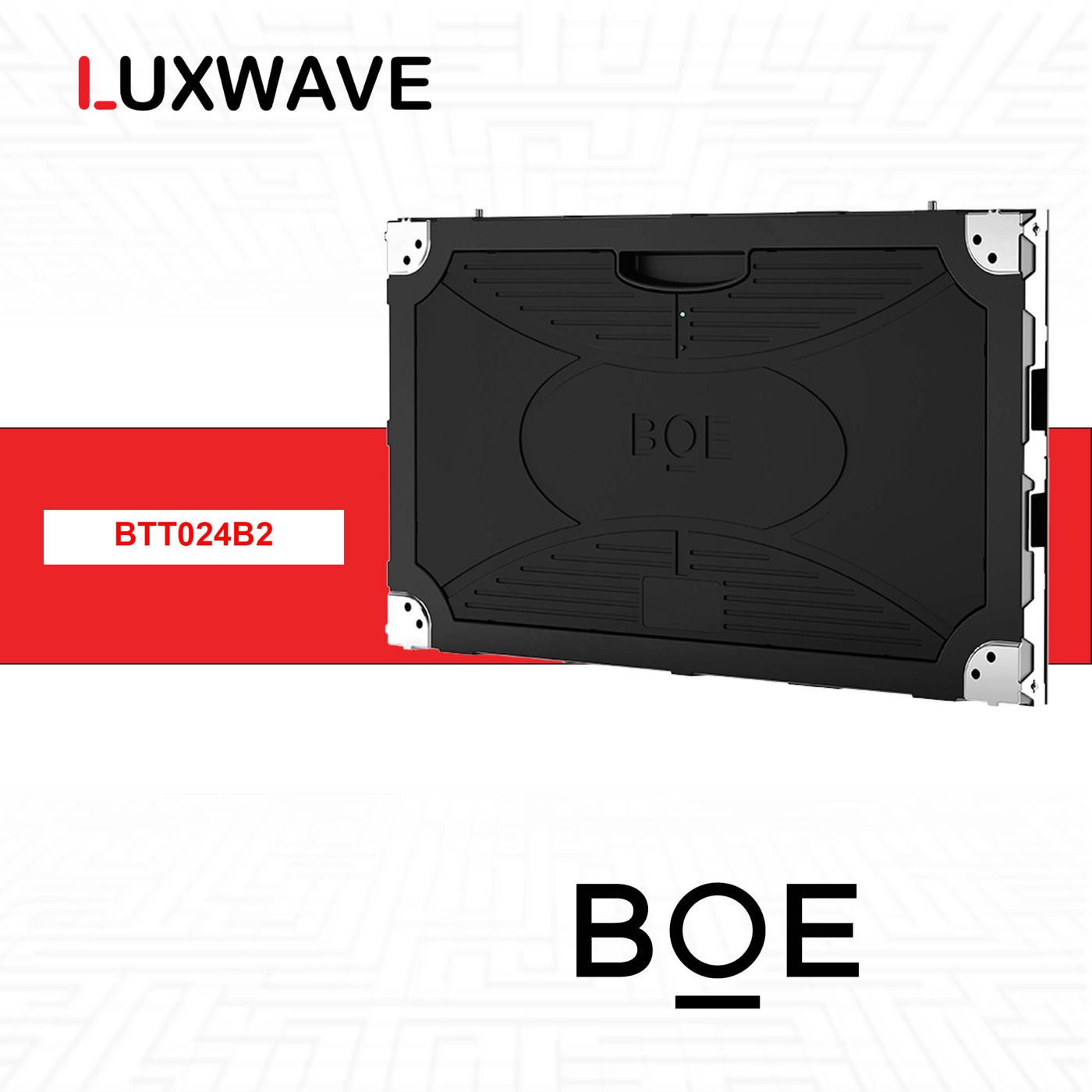

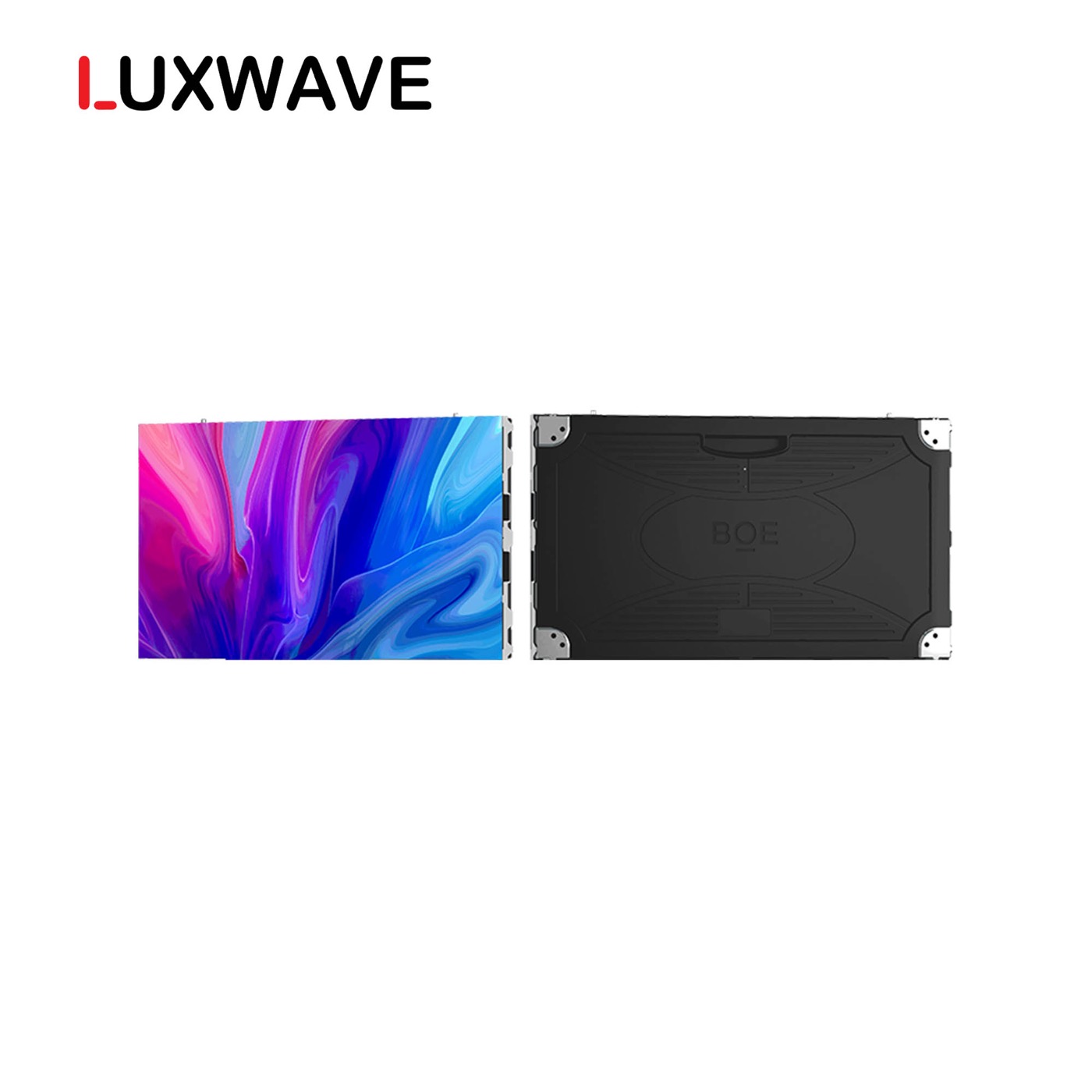

BOE BTT024B2 P2.4

BOE BTT024B2 P2.4
• Brand: BOE MLED
• Model: BTT024B2
• Product type: Màn LED fine-pitch trong nhà (SMD S-PWM, integer pitch)
• Origin: Made in China
• Pixel Pitch(mm): 2.4
• LED Type: SMD1515
• Module Resolution(W×H): 120*135
• Module Size(W×H×D)/(mm): 288*324*2.6
• Pixel Density(dots/㎡): 173611
• Cabinet Resolution(W×H): 240*135
• Cabinet Dimension(W×H×D)/(mm): 576*324*28.6
• Cabinet Area(m²): 0.187
• Cabinet Weight(Kg): 3.3

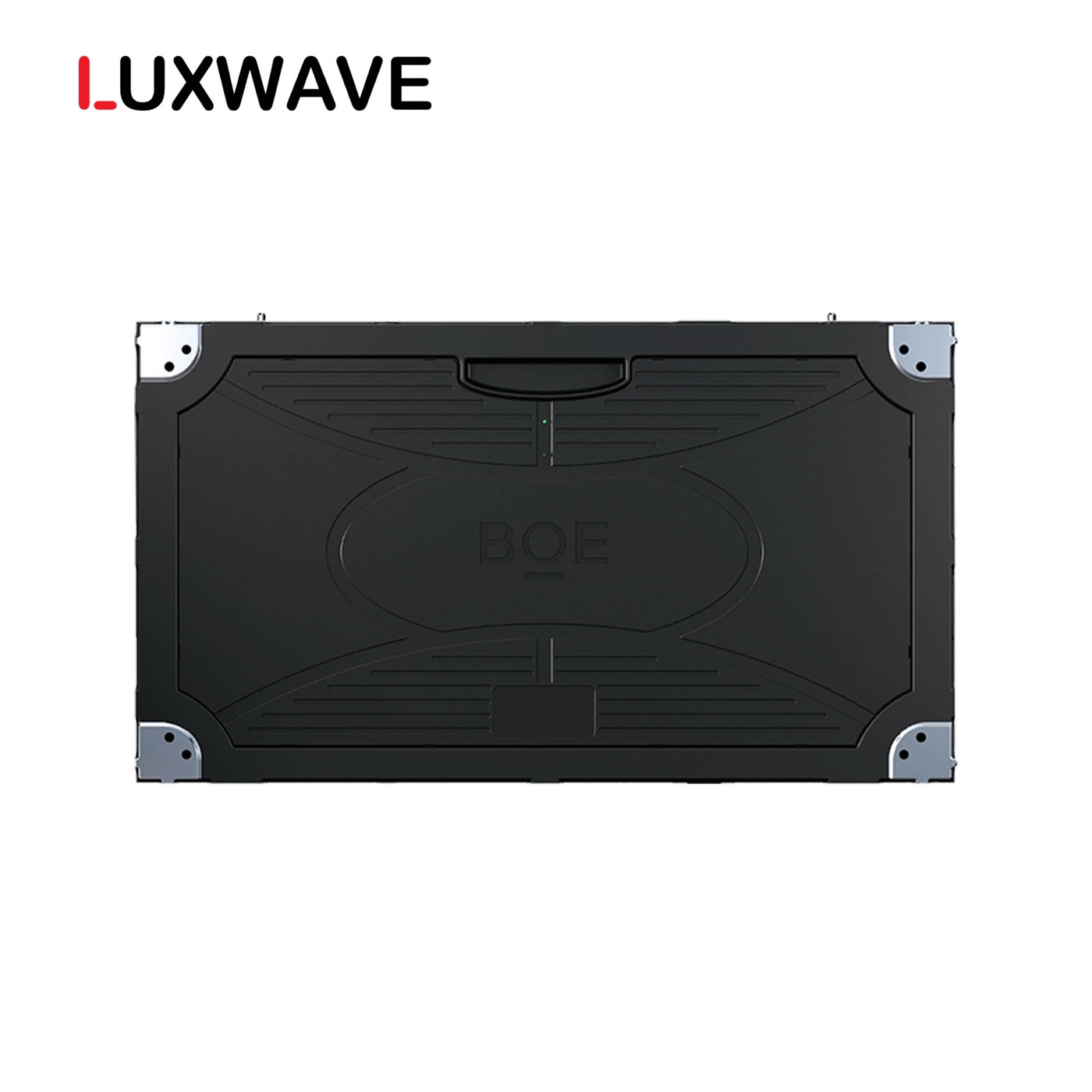

• Cabinet Material: Die-casting Aluminum + PC Rear Cover
• Cabinet Flatness(mm): ≤0.2
• White Balance Brightness(nits): 450
• Contrast Ratio: 5000:1
• Color Temperature(K): 3000-15000
• Viewing Angle (Horizontal/Vertical)(°): 150/130
• Refresh Frequency(Hz): 3840
• Grayscale(bit): 14
• Scanning Mode: 1/45
• AC Operating Voltage(V): 100-240VAC
• Power(Maximum/Average)(W/m²): 350/116
• Application Scenarios: Indoor
• Best View Distance(m): 2.4
• Brightness Control Mode: Manual/Automatic/Program Control
• Storage Temperature(℃)/Humidity (RH): -20~50/10%~65%
• Working Temperature(℃)/Humidity (RH): -10~40/10%~65%
• Protection Grade: IP30
• LED Service Time(H): 50000
• Module Maintenance Methods: Front Maintenance
• Power & Other Maintenance Methods: Front Maintenance
• Product Certifications: CE, FCC, RoHS2.0, UL
• Note: Power will fluctuate within±15%, based on actual measurement.
• Product Features: The integer pixel pitch design increase pixel density by 8.5% and reduce the better viewing distance for 4% compared with common small pitch products; 16:9 golden aspect ratio can perfectly and easily match the needs of 2K/4K/8K screens splicing; Only 3.3Kg and the thickness of 28.6mm per cabinet; 3 in 1 design (integration of power supply, receive card and HUB) and hardwired connection; Module magnetic design supports front installation and maintenance; Modules use S-PWM driver IC which can present in 14bit and 3840Hz.
