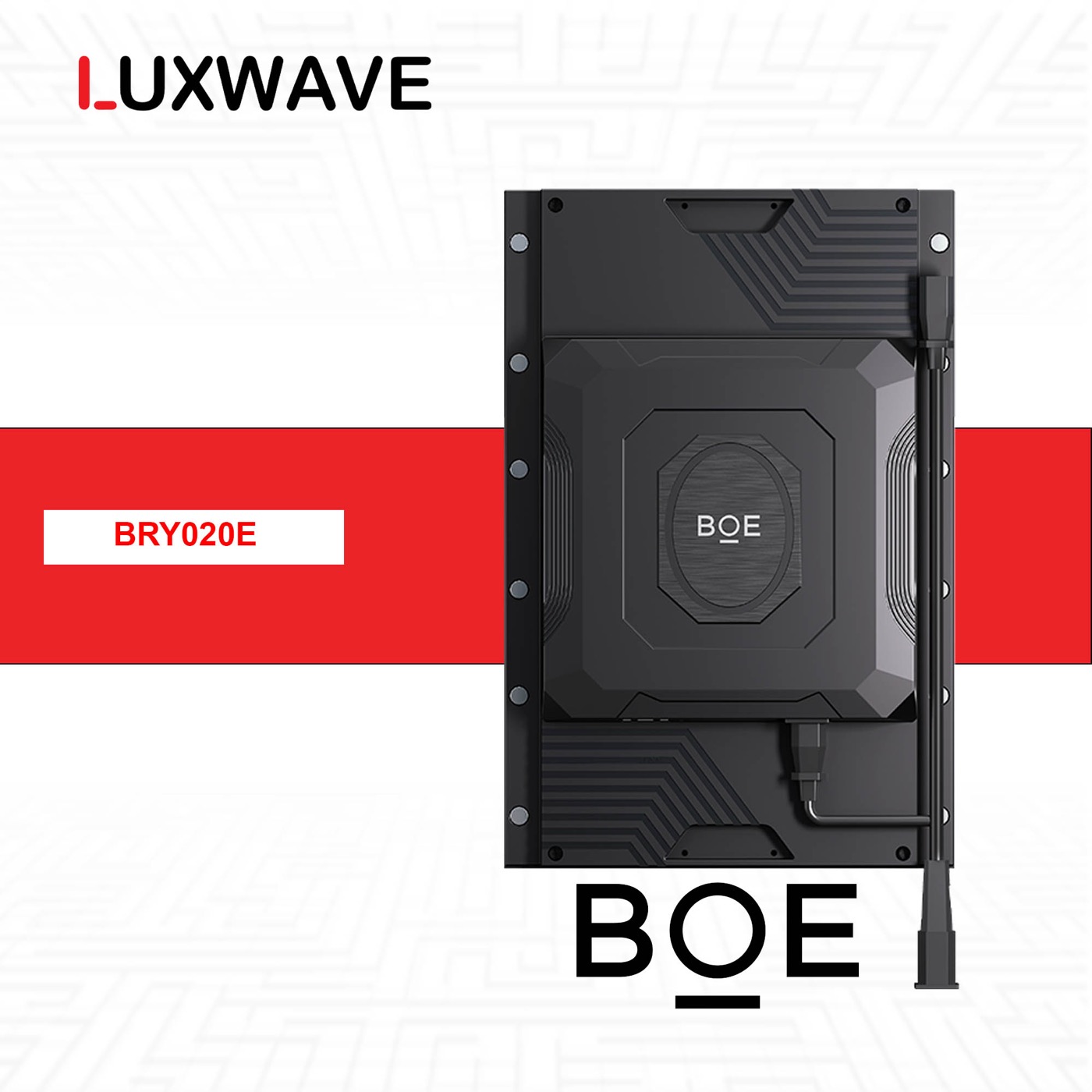

BOE BRY020E P2

BOE BRY020E P2
• Brand: BOE MLED
• Model: BRY020E
• Product type: Màn LED thương mại trong nhà (SMD đồng đỏ)
• Origin: Made in China
• Pitch(mm): 2.0
• LED model: SMD1515
• LED type: Copper wire
• Module resolution: 160*80
• Module size ± tolerance (mm × mm): 319.9(+0.1/-0.05)(H)* 159.9(+0.1/-0.05)(V)
• Pixel density (dots/m2): 250000

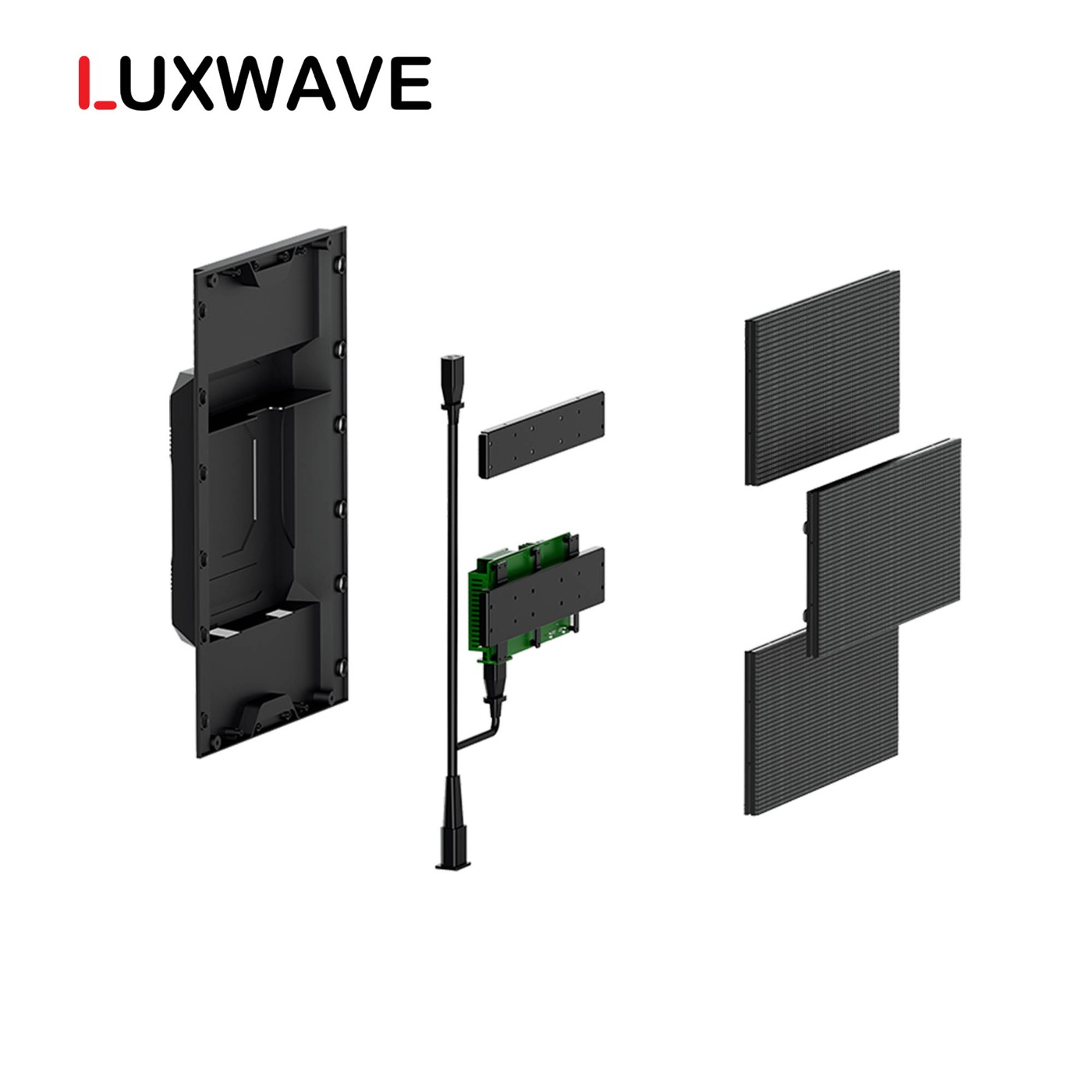

• Whole Chassis Module Components (Pcs): 1*3=3
• Resolution of complete machine box: 160*240
• Box size of the whole machine ± tolerance (mm × mm × mm): 319.9(+0.1/-0.05)(H)*479.85 (+0.1/-0.2) (V)* 63(30.5)(D)
• Box weight of complete machine ± tolerance (Kg): ≤2.5
• Maintenance mode: Front maintenance
• Flatness of complete machine box (mm): ≤0.5
• Segment difference of single box module (mm): ≤0.15
• Module segment difference between boxes (mm): ≤0.2
• Joint (mm): ≤0.18
• Single-point brightness correction: Support
• Single-point chromaticity correction: Support
• White balance brightness (CD/m2): ≥450nits
• Color temperature: 3000-15000K
• Horizontal viewing angle: ≥150°
• Vertical viewing angle: ≥130°
• Visual distance (m) (= PITCH * 1): ≥2.0
• Maximum power consumption of cabinet (W): ≤50
• Average active power consumption (W/m2): ≤108
• Maximum active power consumption (W/m2): ≤325
• Power supply requirement (V): 100-240VAC
• Scanning mode: 1/40
• Frame change frequency (Hz): 50/60
• Refresh Frequency (Hz): ≥3840
• Drive mode: Constant current drive
• Grayscale (Bit): ≥13
• Control mode: Network port
• Control distance: Category 5e twisted-pair cable, over 100 meters using optical fiber transmission
• Signal input: HDMI、DVI
• Brightness adjustment: Manual/automatic/programmed control
• Continuous working time: ≥7X24hrs, supporting continuous and uninterrupted display
• Mean time between failures (MTBF): ≥ 5000 hours
• Discrete out-of-control point: ≤0.0001，Factory 0
• Continuous out-of-control point: 0
• Blind spot rate: ≤0.0001，Factory 0
• Temperature rise of the screen (using the operating state): ≤60℃
• Typical life value (hrs): 30000
• Operating temperature range (℃): -10°-40°
• Storage temperature range (℃): -20°-50°
• Operating Humidity Range (RH): 10-60RH% non-frosting
• Storage Humidity Range (RH): 10-65RH% non-frosting
• Degree of protection: IP30
• CCC: Meet CCC certification requirements
• Energy saving: Meet the requirements of energy-saving certification
